Host Firewall

The web application firewall inspects HTTP requests. The host firewall works one layer below it, on the network itself: it decides which ports of this server are reachable at all, and from where.

CorePanel manages firewalld directly — no agent, no second firewall competing with the first. What it builds is a dedicated corepanel zone whose policy is to drop inbound traffic, with the ports of your installed stack opened explicitly, plus two address lists: one that blocks and one that always lets through.

Everything below is in Security → Firewall in the panel, and in corepanel firewall on the command line. Both drive the same rules; the CLI is what you reach for over SSH, which is also why it is the way out if something goes wrong.

Included in every edition — port rules are Pro and Business

Adopting the firewall, blocking and allowing addresses, and blocking attackers automatically work on Personal, Pro and Business alike. The one paid part is changing which ports are open: on Personal the firewall keeps the ports of your installed stack (the seed), the Port rules tab lists them read-only, and opening, closing or restricting a port requires Pro or Business.

Nothing here is lost when a licence lapses. A server that drops to Personal keeps its firewall, its address lists and its automatic blocking; only the port-rule buttons go away. Pausing the firewall is never gated on any edition.

What a new server starts with

The installer leaves firewalld running, with the ports of the stack it just installed open in the server’s default zone. A new CorePanel server therefore has a firewall from the first boot, on every edition, without anyone deciding anything.

That is not the same as CorePanel managing it. Adopting the firewall — building the corepanel zone and taking over the rules — is an explicit action, and it is what unlocks blocking, the allowlist and automatic blocking (and, on Pro and Business, port rules):

corepanel firewall status

Firewall:              running
Managed by CorePanel:  no
Default zone:          public
...
firewalld is running but CorePanel does not manage it. Run `corepanel firewall enable` to take it over.

Servers installed before this feature existed have no firewall at all: the installer runs once, and it is not re-run by an update. Neither does a server transformed from cPanel, whose CSF the cutover switched off. corepanel firewall status says so plainly, and so does the panel.

The panel tells you when a server is unprotected

Until CorePanel manages the firewall, an address caught guessing passwords is only refused mail and FTP by the authentication broker — the panel, SSH and every website stay open to it. So the panel says so where you will see it:

• On the dashboard, a card reading This server has no firewall (firewalld is not installed, with the dnf install firewalld command to copy) or CorePanel is not managing the firewall (installed but not adopted), with a link to the Firewall section. Do not remind me hides it in that browser; the card comes back if the situation changes — from “not installed” to “not adopted”, for instance.
• Above every Access protection view, one line saying the same thing next to the addresses it concerns.

Neither appears once the firewall is adopted — including while it is paused, which is a decision rather than an oversight — nor while another firewall is active on the server, for the reason in the next section.

Adopting the firewall

Switching a server you reach over the network to default-deny is the operation that deserves a look before it runs. So the port list is deterministic, and the panel shows it before anything changes — an unprotected server lands on this card rather than on a button:

The same list from the shell:

corepanel firewall seed

PORT         PROTO  SERVICE
22           tcp    SSH
80           tcp    HTTP (corehttpd)
443          tcp    HTTPS — sites, panel and webmail
443          udp    HTTP/3 (QUIC)
53           tcp    DNS (authoritative)
53           udp    DNS (authoritative)
21           tcp    FTP control
42000-50000  tcp    FTP passive data
25           tcp    SMTP
465          tcp    SMTPS
587          tcp    Submission
143          tcp    IMAP
993          tcp    IMAPS
110          tcp    POP3
995          tcp    POP3S

The passive FTP range is read from the FTP server’s own configuration, so a server tuned to a different range seeds that one.

The list is derived from what CorePanel installed, not from a template. In particular the SSH port is read from the running sshd, not guessed from a configuration file that may resolve Include directives differently — a server reachable only on 2222 seeds 2222. That is the one mistake that would end the session giving the order.

Then Enable the firewall in the panel, or:

corepanel firewall enable

Either way adoption works in an order chosen so the dangerous step is last: build the zone, create the address lists, apply the seed, and only then make the zone default. Traffic starts being dropped at the final step, with every rule already in place. Running it again on an adopted server repairs anything missing.

Four conditions are checked first, and refused with an explanation rather than worked around:

Condition	Why
firewalld is installed	Minimal cloud images ship without it — including AlmaLinux 10’s. Install it with dnf install firewalld; CorePanel will not install a firewall behind your back
No other firewall is active	firewalld’s own service unit conflicts with the iptables, ip6tables, ebtables, ipset and nftables services: starting it stops them, and their rules go with them. CorePanel refuses instead, and also while ufw is running or CSF is enabled. The panel names what it found; disable it first if you want CorePanel to manage the firewall
The backend is nftables	The deprecated iptables backend cannot hold the address lists as native kernel sets
No direct rules are present	Direct rules push firewalld back onto the legacy path; the ones found are listed so you can remove them

How a packet is judged

Rules are not a flat list — they are evaluated in a fixed order, and the first decision wins. This is what makes the allowlist as powerful as it is:

Two consequences worth keeping in mind:

• An allowlisted address bypasses the port rules too, not just the blocklist. It is not “never block this”, it is “always accept this”. Use it for the office or the jump host you must never lose access from, and for nothing else.
• Outbound traffic is never filtered. The panel’s own calls out — licence check-in, ACME challenges, package updates — cannot be broken by anything in this section.

IPv4 and IPv6

Both, everywhere, without a switch to find.

• Port rules cover both families. Opening 8443 opens it over IPv4 and IPv6 alike — firewalld’s port rules are family-agnostic, and so is the zone’s default-deny target. A rule restricted to source networks is the one exception, and only because a network belongs to one family: --source 203.0.113.0/24 restricts the IPv4 side, and you add --source 2001:db8::/32 for the IPv6 one. A rule with both listed accepts from both.
• The address lists are twin sets. Blocking or allowing a v6 address puts it in the v6 set and a v4 address in the v4 one; the panel and deny list merge them into a single list, with the family shown per entry. Automatic blocking works the same way.
• A bare address becomes a host prefix — /32 for IPv4, /128 for IPv6.
• A prefix with host bits set is refused, not masked. 2001:db8::1/32 is an error naming both fixes, because silently widening it to 2001:db8::/32 would block a great deal more than you asked for.
• IPv4-mapped addresses (::ffff:198.51.100.10) are unmapped to plain IPv4, so they land in the set that actually matches the traffic instead of sitting inert in the other.
• Zoned addresses (fe80::1%eth0) are refused: a firewall rule cannot use a zone.

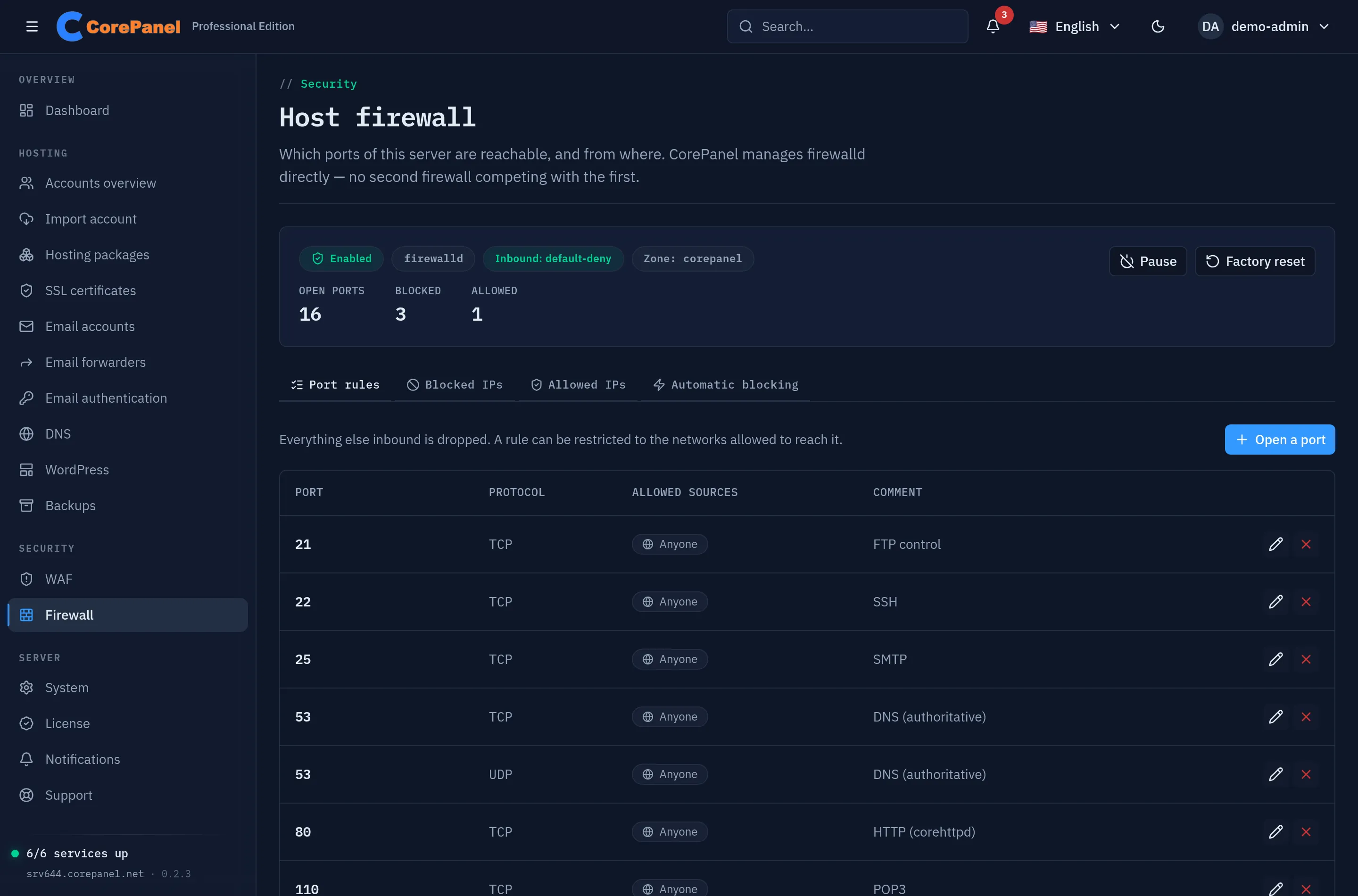

Port rules

The Port rules tab lists every open port with its sources and its comment; “Open a port” adds one, and each row can be edited or closed. From the shell:

corepanel firewall ports list
corepanel firewall ports open 8443 --source 203.0.113.0/24 --comment "staging"
corepanel firewall ports close 8443

Pro and Business

Opening, closing and restricting ports requires Pro or Business. On Personal the tab shows the same table without the actions, and a line saying so; corepanel firewall ports list works on every edition.

A port is a single number or a range (40000-50000), TCP unless --udp is passed, and optionally restricted to source networks. A port with no restriction is reachable by the whole internet — which is what you want for 80 and 443, and rarely for anything else.

Changing who may reach an open port does not close it in between — the pencil icon on a row, or:

corepanel firewall ports edit 8443 --source 198.51.100.0/24

The new sources are in place before the old ones are withdrawn, so an address that keeps access never loses it for an instant. The port and protocol are the rule’s identity and cannot be changed — close the rule and open the new one instead.

SSH and 443 refuse to close

Closing the port sshd listens on, or the panel’s own 443, is refused unless it is forced. The panel names the service behind the port in the confirmation and turns the button into “Close it anyway”; on the command line it is --force. Those are the two ports whose loss ends your access to the server, including the access you would need to undo the mistake.

Comments are CorePanel’s, not firewalld’s — the firewall has nowhere to store them. They are kept per port and protocol, which is why editing a rule’s sources keeps its comment while closing and reopening the port does not inherit the old one.

Blocking addresses

The Blocked IPs tab, or:

corepanel firewall deny 203.0.113.7 --ttl 24h --comment "ssh brute force"
corepanel firewall deny 198.51.100.0/24
corepanel firewall deny list

A block is permanent unless it is given a deadline — the panel offers 1 hour, 24 hours, 7 days or permanent (and a free-form value in hours); the CLI takes --ttl, from one minute to seven days. The list shows what is blocked, how long each entry has left, and why:

ADDRESS          EXPIRES    ORIGIN   COMMENT
203.0.113.7/32   in 23h     manual   ssh brute force
198.51.100.0/24  permanent  manual   scanner
192.0.2.4/32     in 41m     manual   -

The deadline is CorePanel’s, not the kernel’s

firewalld can hold entries that expire by themselves, but on both RHEL 8 and RHEL 10 such an entry cannot be read back or removed through its API — it is write-only, and on EL8 the timeout is ignored outright. Blocks are therefore stored flat, and CorePanel releases the expired ones once a minute and once at startup.

The practical consequence is a good one: a block survives a reboot and still expires on time, even if the deadline passed while the machine was off.

An entry the kernel is blocking that CorePanel has no record for is listed as untracked rather than hidden. It usually means the metadata was lost; the address is genuinely blocked either way, and you can remove it like any other.

Unblocking an address that is not blocked succeeds, which makes deny remove safe to run from a script that does not check first.

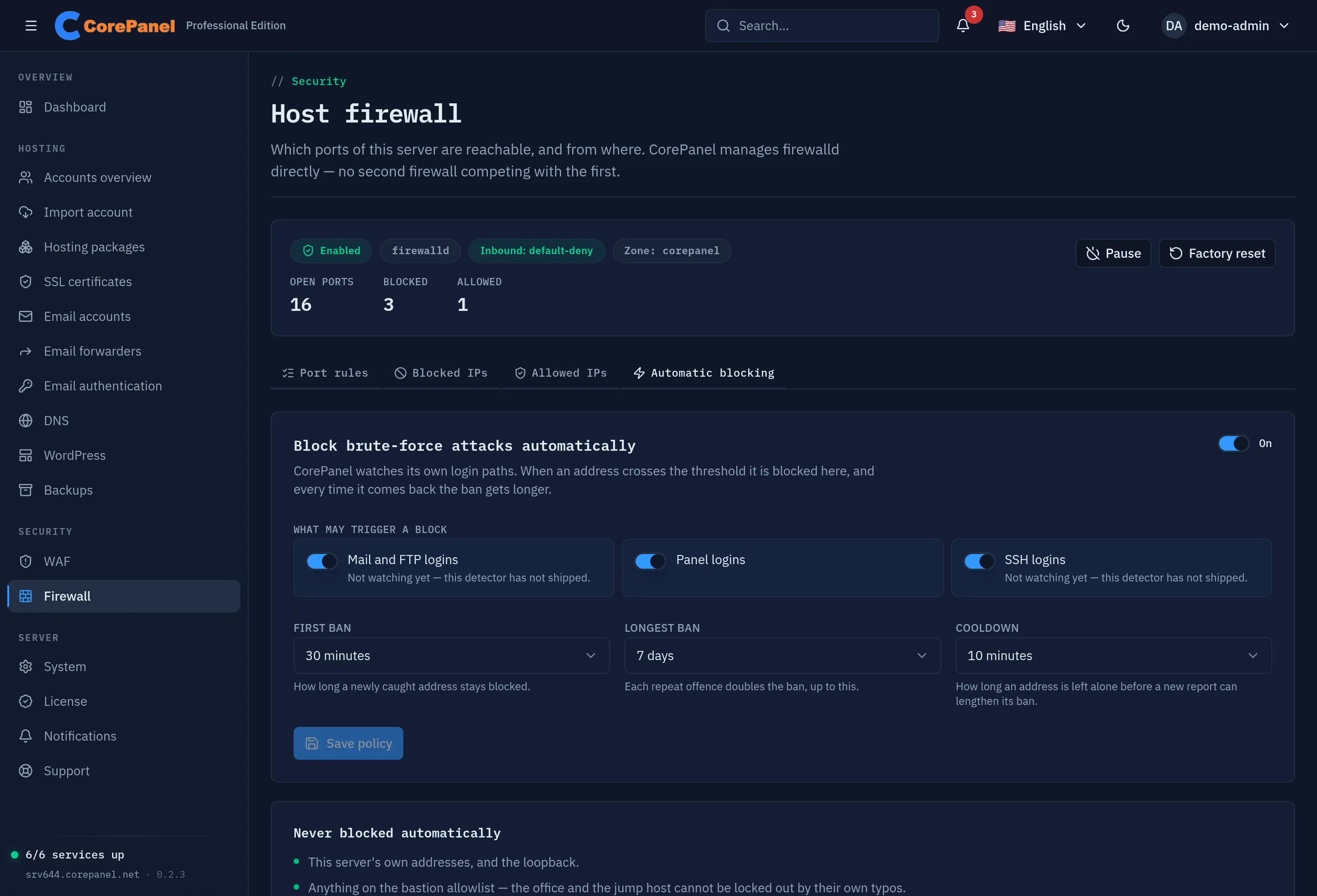

Blocking attackers automatically

The Automatic blocking tab, or corepanel firewall autoblock.

CorePanel watches its own login paths. When an address crosses the threshold of one of them it is reported, and this policy decides what happens next.

The ban gets longer every time the same address comes back:

Offence	Ban
1st	30 minutes (--ttl)
2nd	1 hour
3rd	2 hours
…	doubling
—	stops at 7 days (--max-ttl)

Escalation is an update of the deadline, never an unblock followed by a re-block, so the address stays blocked throughout — there is no window in which it is let back in.

Cooldown (10 minutes by default) is how long an address is left alone before a new report can lengthen its ban. Without it the counter would measure how fast an attacker knocks rather than how often they come back, and a determined bot would reach the seven-day ceiling in under a minute.

Signal sources are the login paths allowed to trigger a block. Each can be switched off on its own:

Source	Watches	Status
panel	Panel logins, via the API’s brute-force guard	Reporting
mail	IMAP, POP3, SMTP and FTP logins, via the authentication broker	Reporting
ssh	SSH logins, root included, via the authentication broker	Reporting — banned from SSH only

An SSH attacker is never banned here. The ssh source, the ban lengths and the cooldown on this tab apply to it, but the ban itself is made by the SSH guard: only new connections to the SSH port are dropped, and the address keeps its websites, its mail and the panel — the page you would release yourself from. It works whether or not this firewall is adopted. Switching the ssh source or automatic blocking off stops new SSH bans and suspends the ones in force.

Only an address that crossed the threshold is ever reported. A username being locked out is not evidence against whichever address happened to be last: on a shared or NAT’d source that would ban a gateway full of innocent people, at the attacker’s choosing.

The mail source carries an extra rule that this page enforces regardless of what the detector sends: an address that has failed against fewer than three different accounts is never blocked, however many times it failed. One mailbox failing over and over is a stale password on somebody’s device, and banning the address it comes from cuts off whoever owns it. See Access protection for the rest of what the mail detector requires before it will report anything at all.

corepanel firewall autoblock
corepanel firewall autoblock set --enable --sources panel,ssh --ttl 1h --max-ttl 48h
corepanel firewall autoblock set --disable

Four things are never blocked automatically

• This server’s own addresses, and the loopback.
• Anything on the bastion allowlist — the office and the jump host cannot be locked out by their own typos, whatever any detector reports.
• Addresses you blocked by hand. A deliberate permanent block is never rewritten into a shorter automatic one.
• Addresses that are not globally routable: private ranges, link-local, and carrier-grade NAT (100.64.0.0/10). The first two are your own plumbing — the container network, the provider’s LAN — and the third can be tens of thousands of mobile subscribers sharing one address.

If the allowlist cannot be read at that moment, nothing is blocked. Not knowing whether an address is a bastion is not a reason to ban it — the attack stays visible and will be reported again a minute later.

Automatic blocking runs on every edition, Personal included, as soon as the firewall is adopted. Until it is, the authentication broker still refuses an attacking address mail and FTP on its own. Turning the switch off keeps detection running: you keep seeing the attacks, and nothing is banned at the firewall without you.

The bastion allowlist

The Allowed IPs tab, or:

corepanel firewall allow 203.0.113.10 --comment "office"
corepanel firewall allow list

Addresses here are accepted before every other rule is evaluated: they cannot be blocked, and they reach ports that are closed to everyone else. Powerful, and worth keeping short.

Add and remove them through the panel or the CLI, which take effect for automatic blocking and the SSH guard at once. An entry written straight into firewalld with firewall-cmd reaches the kernel immediately too, but automatic blocking only notices it within five minutes: CorePanel keeps the list in memory rather than asking firewalld on every report.

When something goes wrong

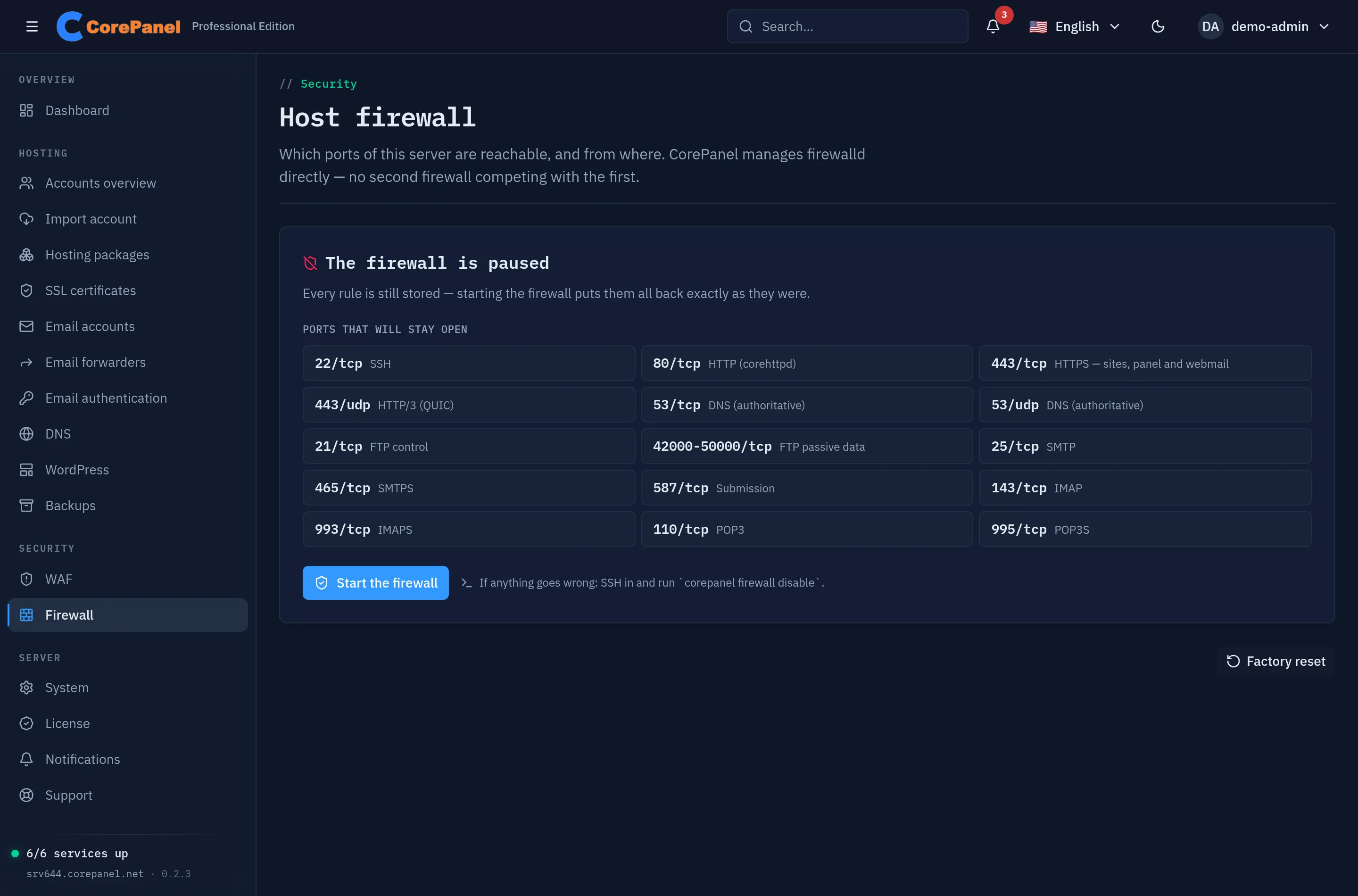

The panel has a Pause button in the status header, on every edition. But the firewall is the one feature whose failure mode is losing access to the machine that runs it — including access to the panel. So the way out does not depend on the panel, on a licence, or on anything that could itself be unreachable: SSH in and run

corepanel firewall disable

firewalld stops, the server accepts everything again immediately, and nothing is destroyed: every rule stays in firewalld’s permanent configuration, and corepanel firewall enable puts it all back. This command asks no questions and no edition may refuse it.

To go further and remove CorePanel’s configuration entirely — handing the default zone back to what it was before adoption and deleting the zone, its rules and both address lists:

corepanel firewall factory-reset

That one is destructive: the blocked and allowed addresses go with the lists. It is not how you turn the firewall off; disable is, and disable is reversible.
